HAMMER UNIONS

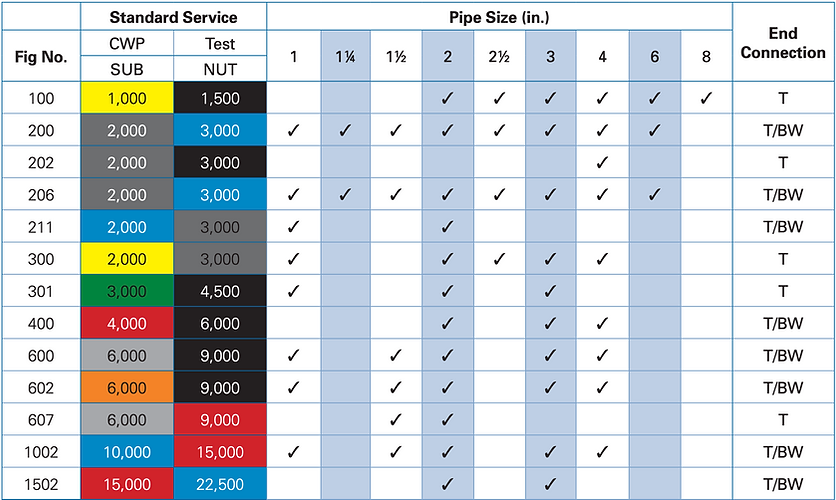

Refrence Chart.png
Hammer Unions: Welcome

HAMMER UNIONS

Fig 100.png

1,000 PSI CWP — 1,500 PSI TEST
Color Code: Yellow Subs/Black Nut
Material: A105 Forged Steel

Economical union with precision machined metal-to-metal sealing surfaces. Low pressure service. Manifold and general service.

Fig 200.png

2,000 PSI CWP — 3,000 PSI TEST

Color Code: Gray Subs/Blue Nut

Material: A105 Forged Steel

It meets most requirements in the medium pressure ranges. Precision seating surfaces assure dependable pressure seal. A great general purpose union.

Fig 206.png

2,000 PSI CWP — 3,000 PSI TEST

Color Code: Gray Subs/Blue Nut

Material: A105 Forged Steel

This union has O-Ring Seal added to the Male Sub, which functions as a secondary seal. Subs and Nuts of the Figure 206 union are interchangeable with the Figure 200.

Fig 400.png

4,000 PSI CWP — 6,000 PSI TEST
Color Code: Red Subs/Black Nut
Material: AISI1040 Forged Steel

It features a precision ball and cone sealing surface for sure metal- to-metal seal. Ideal for manifold and pumping service.

Fig 602.png

6,000 PSI CWP — 9,000 PSI TEST
Color Code: Orange Subs/Black Nut
Material: AISI4130/4140 Forged Steel

It has a replaceable lip-type seal ring of Buna-N specifically designed to minimize fluid flow turbulence. The replaceable lip-type ring also provides a pressure seal and protection for the metal-to-metal seating surfaces. These unions are recommended for manifold and truck mounting where size and weight are critical.

Fig 602 BW.png

6,000 PSI CWP — 9,000 PSI TEST
Color Code: Orange Subs/Black Nut
Material: AISI4130/4140 Forged Steel

It has a replaceable lip-type seal ring of Buna-N specifically designed to minimize fluid flow turbulence. The replaceable lip-type ring also provides a pressure seal and protection for the metal-to-metal seating surfaces. These unions are recommended for manifold and truck mounting where size and weight are critical.

Fig 1002.png

10,000 PSI CWP — 15,000 PSI TEST
Color Code: Blue Subs/Red Nut
Material: AISI4130/4140 Forged Steel

It is made of alloy steel forgings for high-pressure manifold and treating connections, such as cementing, fracturing, and acidizing. Employs a double seal that combines an elastomeric gasket with a metal-to-metal connection.

Fig 1002 BW.png

10,000 PSI CWP — 15,000 PSI TEST
Color Code: Blue Subs/Red Nut
Material: AISI4130/4140 Forged Steel

It is made of alloy steel forgings for high-pressure manifold and treating connections, such as cementing, fracturing, and acidizing. Employs a double seal that combines an elastomeric gasket with a metal-to-metal connection.

fig 1502.png

15,000 PSI CWP — 22,500 PSI TEST

Color Code: Red Subs/Blue Nut

Material: AISI4130/4140 Forged Steel

It has a replaceable lip-type seal ring of Buna-N specifically designed to minimize fluid flow turbulence The lip-type ring also provides a pressure seal and protection for the metal-to-metal seating surfaces. These unions are recommended for manifold and truck mounting or other installations where extreme high pressure is encountered.

Fig 1502 BW.png

15,000 PSI CWP — 22,500 PSI TEST

Color Code: Red Subs/Blue Nut

Material: AISI4130/4140 Forged Steel

It has a replaceable lip-type seal ring of Buna-N specifically designed to minimize fluid flow turbulence The lip-type ring also provides a pressure seal and protection for the metal-to-metal seating surfaces. These unions are recommended for manifold and truck mounting or other installations where extreme high pressure is encountered.
